Qwen2.5VL视觉编码器
输入数据
- pixel_values:
Tensor[[grid_t*grid_h*grid_w, 1176], bf16, cuda:0] - image_grid_thw:
image_grid_thw: [[grid_t, grid_h, grid_w]] Tensor[[1, 3], u32, cuda:0]
PatchEmbed
PositionEncode
WindowAttention

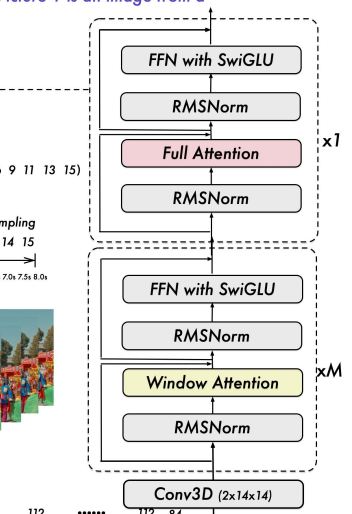

Vision Encode整体结构
- 输入数据：(grid_t*grid_h*grid_w, 1176)
- 经过patch embed: (grid_t*grid_h*grid_w, 1280)
- attention block
- block num: 32
- hidden_size: 1280
- intermediate_size: 3420
- 旋转位置编码生成
- window attention:[0..6, 8..14, 16..22, 24..30]
- 输入数据索引重排列
- 窗口attention_mask生成
- full attention: [7, 15, 23, 31]
- attention_mask全0矩阵
- merge:
- (grid_t*grid_h*grid_w, 1280) -> (grid_t*grid_h*grid_w/2/2, 1280*4)
- linear1: (grid_t*grid_h*grid_w/2/2, 1280*4)-(grid_t*grid_h*grid_w/2/2, 1280*4)
- linear2: (grid_t*grid_h*grid_w/2/2, 1280*4)->(grid_t*grid_h*grid_w/2/2, 2048)
- 恢复原来的索引
输出数据
hidden_state: (grid_t*grid_h*grid_w/2/2, 2048)
