DeepSeek-OCR推理详解

模型结构图

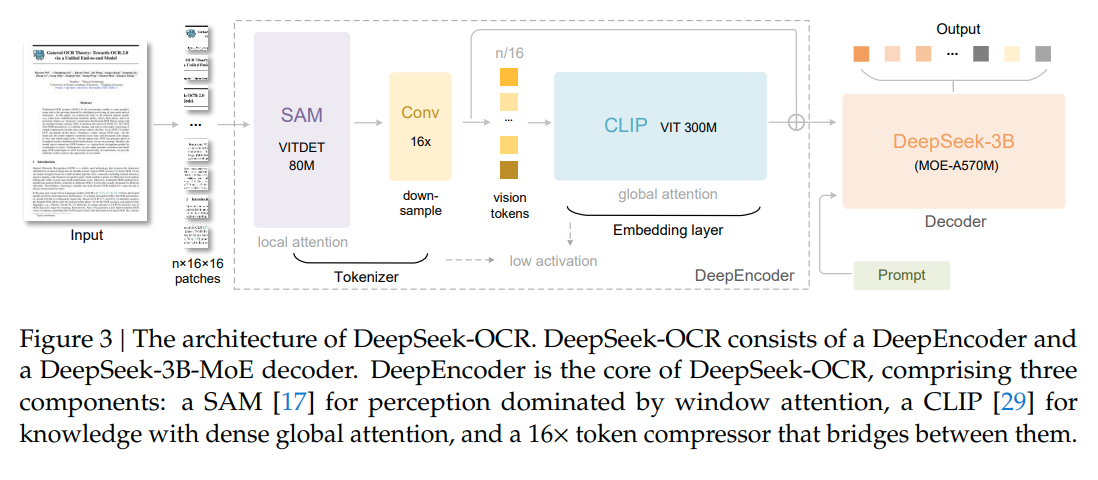

DeepSeek-OCR结构图图片地址：DeepSeek-OCR: Contexts Optical Compression

输入数据

{
        "model": "deepseek-ocr",
        "messages": [
            {
                "role": "user",
                "content": [
                    {
                        "type": "image",
                        "image_url":
                        {
                            "url": "file://./assets/img/ocr_test1.png"
                        }
                    },
                    {
                        "type": "text",
                        "text": "<image>\n<|grounding|>Convert the document to markdown. "
                    }
                ]
            },
            {
                "role": "assistant",
                "content": ""
            }
        ],
        "metadata": {"base_size": "640", "image_size": "640", "crop_mode": "false"}
    }

preprocess

对文本分词
原生分辨率
- Tiny: base_size = 512, image_size = 512, crop_mode = False
- Small: base_size = 640, image_size = 640, crop_mode = False
- Base: base_size = 1024, image_size = 1024, crop_mode = False
- Large: base_size = 1280, image_size = 1280, crop_mode = False
- resize:
  - image_size <= 640:不保持图像比例，直接resize
  - image_size > 640:图像保持原比例resize_padding成base_size大小
动态分辨率
- Gundam: base_size = 1024, image_size = 640, crop_mode = True
- Gundam-M: base_size = 1280, image_size = 1024, crop_mode = True
- 局部视图，分块
  - 控制分块数量在2-9之间
  - 根据图片的高宽比计算分块比率
  - (909, 615)-> (3:2)
  - (909, 615) -> (image_size*3, image_size*2) -> 分成6块
- 全局视图，resize_padding
  - 图像保持原比例resize_padding成base_size大小
图像归一化
计算image token的数量，分词向量添加对应数量个image_token_id
得到images_seq_mask

DeepEncoder

SAM

以窗口注意力机制为主的视觉感知特征提取
patch_embed:
- conv2d: in_c=3, out_c=768, kernel_size=16, stride=16
- 16倍下采样: 512->32, 640->40, 1024->64, 1280->80
绝对位置编码-pos_embed
- (1, 1024/16, 1024/16, 768)
- 双三次插值->(1, image_size/16, image_size/16, 768)
blocks: 12层
- window_attn
  - 窗口分割
    - window_size=14
    - (b, h, w, c)
    - -> 右padding (b, hp, wp, c)
    - -> (b, hp/window_size, window_size, wp/window_size, window_size, c)
    - -> (b, hp/window_size, wp/window_size, window_size, window_size, c)
    - -> (b * hp/window_size * wp/window_size, window_size, window_size, c)
  - 恢复
    - (b * hp/window_size * wp/window_size, window_size, window_size, c)
    - -> (b, hp/window_size, wp/window_size, window_size, window_size, c)
    - -> (b, hp/window_size, window_size, wp/window_size, window_size, c)
    - -> (b, hp, wp, c)
    - -> (b, h, w, c)
- global_attn:[2, 5, 8, 11]
- attn:
  - (b, h, w, dim)
  - qkv_linear -> (b, h, w, dim*3)
  - -> (b, h*w, 3, num_heads, head_dim)
  - -> (3, b, num_heads, h*w, head_dim)
  - -> q/k/v: (b, num_heads, h*w, head_dim)
  - softmax(QK^T/√d)V: 普通注意力只考虑查询（Query）和键（Key）之间的内容相似度
  - 引入相对位置编码图片地址：MViTv2
    - q与k的相对位置
      - 分别处理高度和宽度上的相对位置
      - 以h=w=14为例
      - relative_coords[i][j]用索引计算相对位置距离
      - 距离i-j,得到的范围为：[-13, 13] 加上偏移后的范围[0, 26]
      - relative_coords[0][0]:实际相对位置为0,实际用13表示
    - rel_pos_h:(h_, head_dim), h_: 2*14-1=27 / 2*64-1=127
    - rel_pos_w:(w_, head_dim), w_:27/127
    - 线性插值(h_/w_, head_dim) -> (h_real_/w_real_, head_dim), h_real_: 2*h-1, w_real_: 2*w-1
    - 按位置索引得到相对位置嵌入
    - rh: (q_h, k_h, dim)
    - rw: (q_w, k_w, dim)
    - rel_h: q_i dot rh
    - rel_w: q_i dot rw
    - rel_h和rel_w通过attn_bias加上去
    - 允许每个qi根据相对位置j来调整其对键j的注意力。qi对相对位置j的“偏好”或敏感度。使得注意力得分不仅取决于内容匹配，还取决于相对位置关系。
neck: 两个Conv2d,kernel_size分别为: 1, 3，padding分别为0,1， stride都是1, in_c: 768, out_c: 256
Conv2d: kernel_size: 3, padding: 1, stride: 2, in_c: 256, out_c: 512
Conv2d: kernel_size: 3, padding: 1, stride: 2, in_c: 512, out_c: 1024
输出: (b, 1024, image_size/16/4, image_size/16/4)
512->32->8, 640->40->10, 1024->64->16, 1280->80->20

CLIP

全局注意力机制的视觉知识特征提取
embeddings
- (257, 1024), 0-class_embeds
- 双三次插值->(h*w, 1024)
transformer

动态分辨率

局部视图与全局视图分别经过SAM和CLIP，将两部分数据拼接

DeepSeek3B-MoE-A570M

MoE:
- 参考博客：【MOE-混合专家模型】 https://mp.weixin.qq.com/s/HRjjxjRJ51UEgTCpiIN6jg
- 参考视频：【MOE混合专家模型介绍】 https://www.bilibili.com/video/BV1dtYAziEZv/
